Reliable industrial braking solutions designed for applications where emergency stopping and fail-safe operation are required.

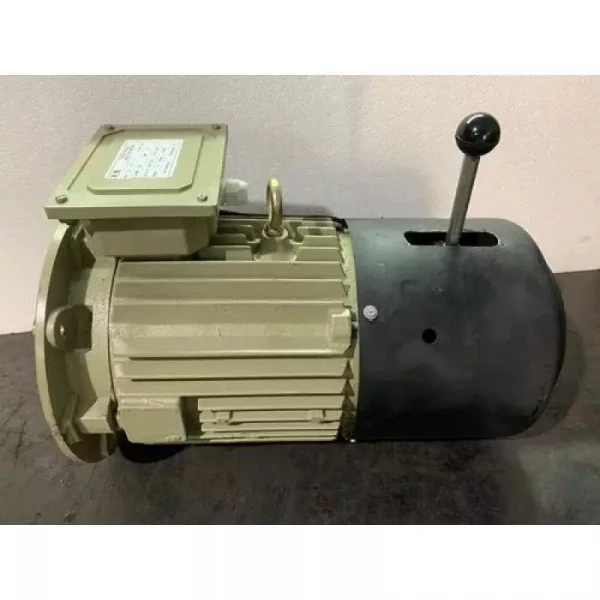

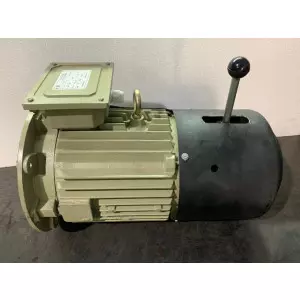

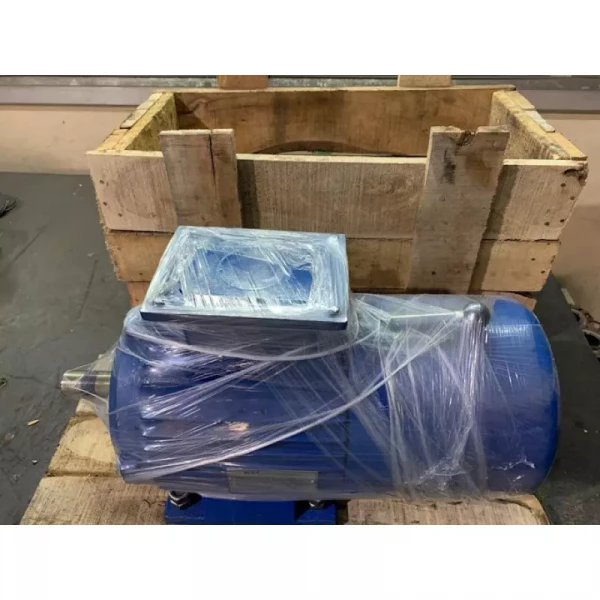

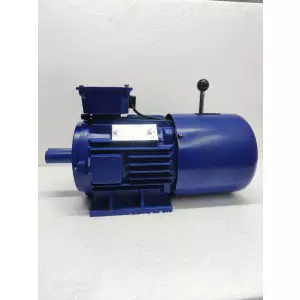

K.M. Enterprise manufactures D.C. Fail Safe Brakes and Brake Motors for industrial applications.

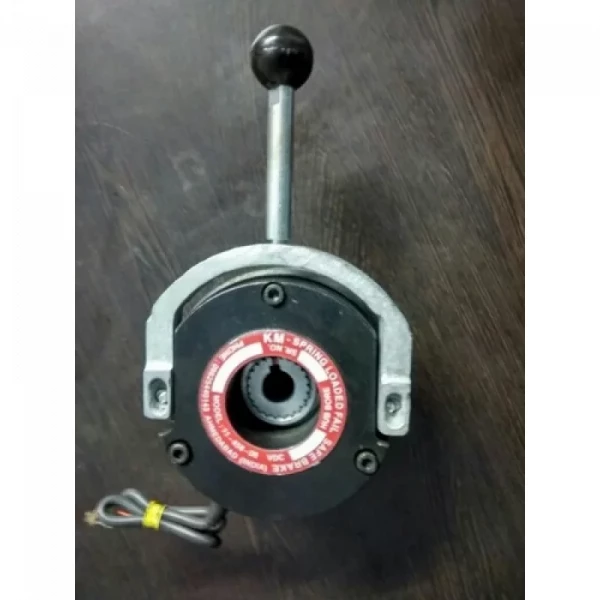

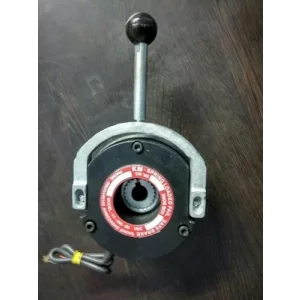

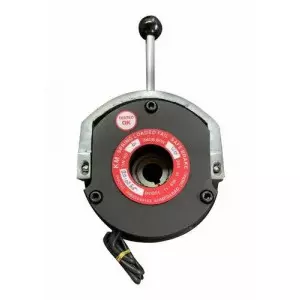

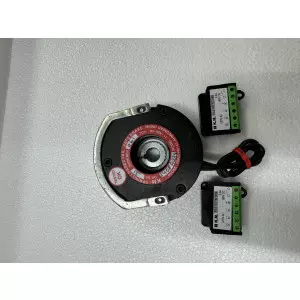

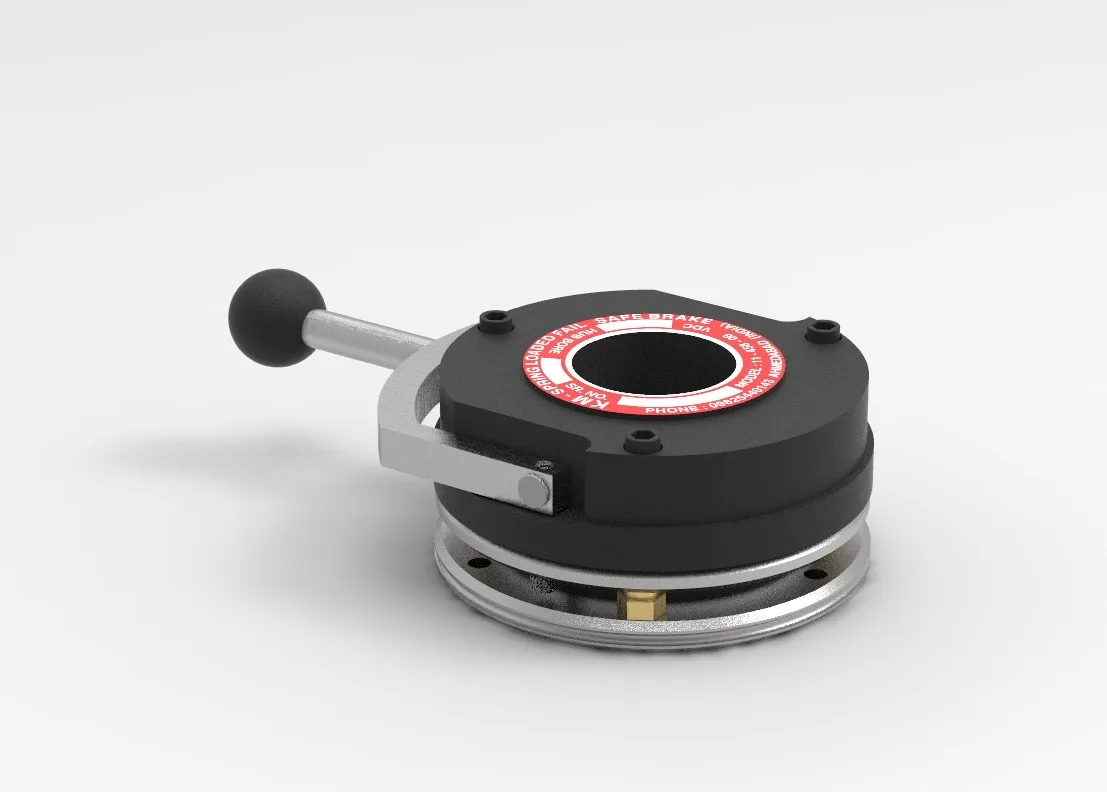

Normally On Fail-Safe Braking System designed for industrial machinery and applications where emergency stopping is required.
Reliable braking solutions designed for industrial machinery requiring controlled stopping and safe operation.
Key features designed for industrial braking applications.

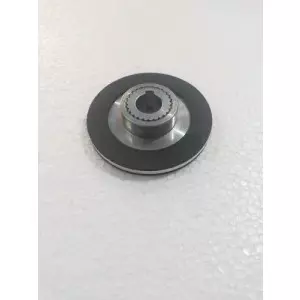

When electric current is supplied to the brake coil, the middle plate moves towards the outer pole against the spring force and the rotor is released.
When power is cut off, compression springs return the middle plate to its original position and lock the rotor and motor. The brake operates as a Normally On fail-safe brake.
Available in multiple sizes to meet different industrial requirements.
| Brake Size | 08 | 10 | 12 | 14 | 16 | 18 |
|---|---|---|---|---|---|---|
| Supply Voltage | 24/190Vdc | 24/190Vdc | 24/190Vdc | 24/190Vdc | 24/190Vdc | 24/190Vdc |
| Torque (Nm) | 08 | 16 | 32 | 60 | 80 | 150 |
| Rotor OD | 78 | 96 | 115 | 125 | 150 | 175 |
| Hub Bore | 15/19 | 15/19 | 19/24 | 24/28 | 32/38/P | 34/38/P |
Select the basic brake according to the required torque.
The safety factor should be selected according to load conditions and application requirements.
